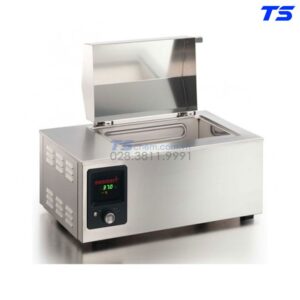

Bể ổn nhiệt tuần hoàn, 20 lít – IC basic pro 20 c – 8036800 – IKA

Giá:

147,120,300  123,581,000


Mô tả ngắn

Thông số kỹ thuật

Appliance typeimmersion thermostat
Classification according to DIN 12876III
Identification according to DIN 12876FL
Heat output2500 W
Operating temperature min.-20 °C
Operating temperature max. (with external heating)250 °C
Working temperature min.room temp. +10K @1000rpm °C
Working temperature max.250 °C
Temperature displayyes
Temperature controlPT 100
Working temperature sensorPT 100
Safety temperature sensorPT1000
Working temperature displayTFT
Safety temperature displayTFT
Temperature stability DIN 128760.01 ±K
Connection for ext. temperature sensorPT 100
Display resolution0.01 ±°C
Display for operation with ext. sensoryes
Heat control accuracy0.1 ±K
Warning function opticalyes
Warning function acousticyes
Warning function excess temperatureyes
Warning function insufficient temperatureno
Adjustable safety circuit min.0 °C
Adjustable safety circuit max.260 °C
Sub-level protectionyes
Over-level protectionyes
Pump typePressure- / suction pump
Pump capacity adjustableyes
Pump pressure max. (0 liters discharge flow)0.7 bar
Pressure pump (suction side) (0 liter flow)0.4 bar
Pump pressure max. (0 bar back pressure)26 l/min
Pump connectionM16x1
Cooling coil connectionNW 8
Bath depth min.150 mm
Calibration optionyes
Appliance fastenerBridge
Range of universal clamp min.260 mm
Range of universal clamp max.360 mm
Technical data complies with the standardDIN 12876
Permissible ON time100 %
Dimensions (W x H x D)285 x 313 x 291 mm
Weight8.8 kg
Permissible ambient temperature5 – 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
USB interfaceyes
Voltage230 / 100 – 115 V
Frequency50/60 Hz
Power input2650 W
